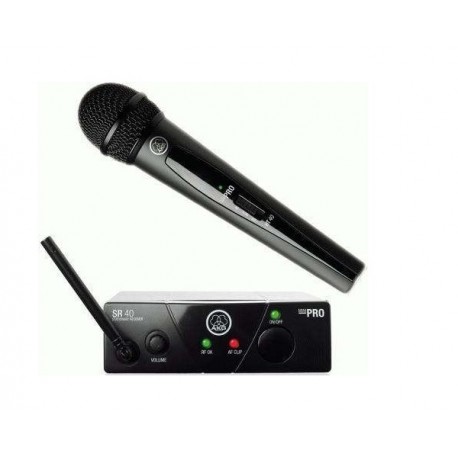

AKG WMS40 MINI VOCAL SET

Composizione sistema radio :

• FREQUENZA : ISM1 863.100 Mhz
• Trasmettitore: HT 40 mini
• Ricevitore: SR 40 mini
• Capsula: dinamica
• Supporto microfonico: si
• Kit montaggio a rack: optional RMU40
• Valigetta: no
• Batteria: 1 x AA non inclusa
• Alimentatore: si

Caratteristiche tecniche dei componenti :

RICEVITORE SR 40 MINI

• Frequenza portante fissa : 863.100 MHz
• Audio bandwidth: 40 HZ to kHz
• THD: typ. 0,8 % (at 1 kHz)
• Signal/noise ratio typical: 110 dB(A)
• Audio outputs: bal. 1/4″ jack, output level adjustable, at rated deviation: 500 mV rms.
• Power supply: 110/240 VAC
• Dimensions : 133 x 43 x 132 mm (5.2 x 1.7 x 5.2 in.)
• Net weight: 581 g (1.3 lbs.)

TRASMETTITORE HT 40 MINI

• Carrier frequency range: 863.100 MHz, 1 fixed frequency
• Audio bandwidth: 40 HZ to kHz
• THD: typ. 0,8 % (at 1 kHz)
• Signal/noise ratio: typ. 110 dB(A)
• RF output power: 10 mW (ERP)
• Battery life: 30 h (for 2200 mAh) with 1 AA size battery
• Dimensions: 230 x Ø 52,5 mm (9 x 2 in.)
• Net weight: 195 g (6.95 oz.)
